ACMA™

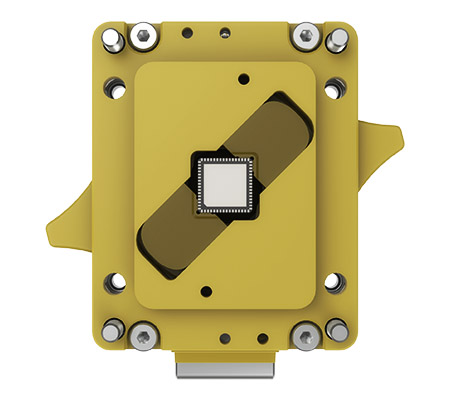

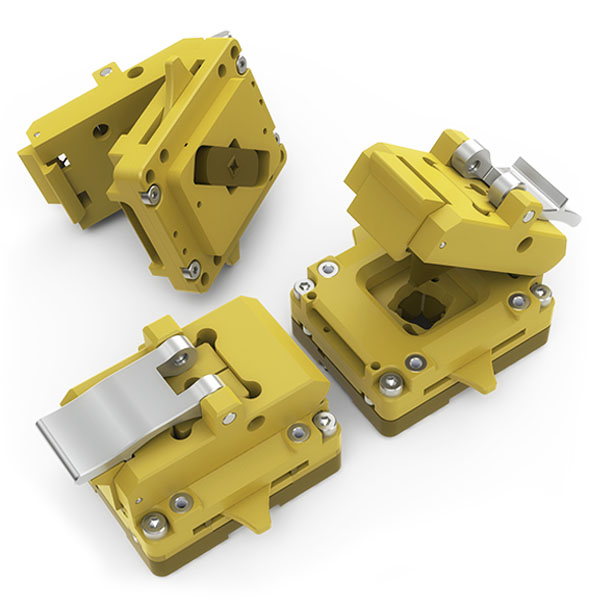

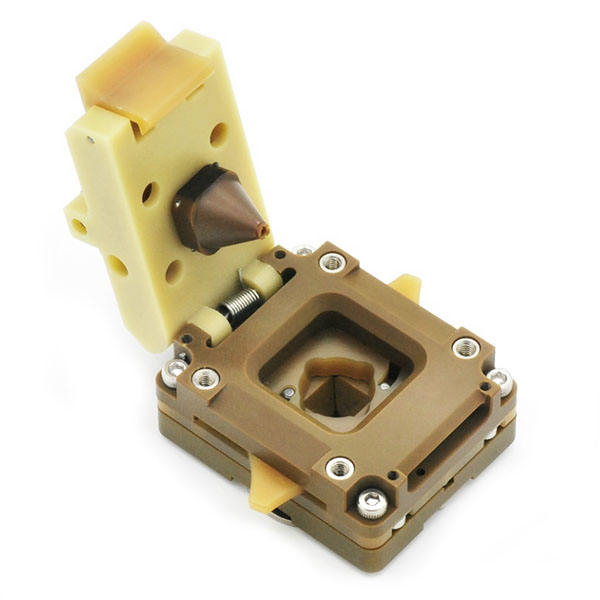

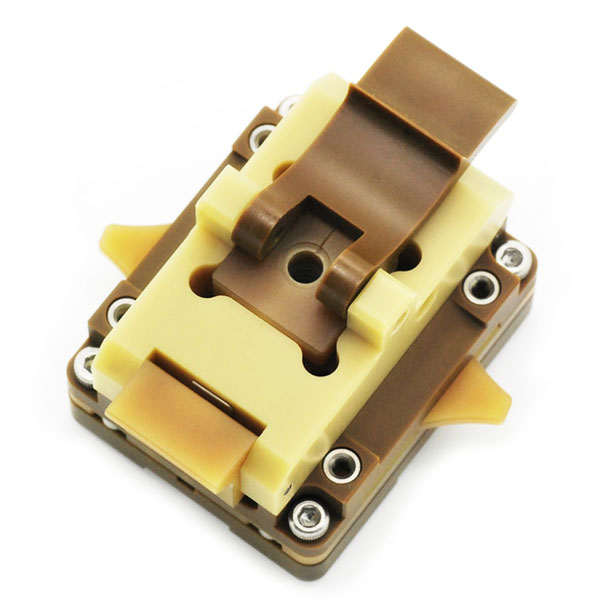

Introducing one of the World’s 1st auto centering manual actuator, catering to package sizes from 2mm x 2mm up to 7mm x 7mm
|
|
ACMA™
Introducing one of the World’s 1st auto centering manual actuator, catering to package sizes from 2mm x 2mm up to 7mm x 7mm
|
 | Lessen the number of dedicated MA |
| Less inventory management compared to dedicated ones |
| Few in one technology enable the user to test device sizes from 2mm to 7mm |
| 100% FPY due to precise holding of device to centre regardless of the size variation |
| Direct cost saving by reduced purchase of dedicated MAs |
| Spring loaded, cam actuated precision auto centering mechanism |
| Self-latch direct drive load design |
| Provides simple latching/releasing of the actuator |
| Guides the package precisely before engaging the lead backer |
| Cam mechanism actuates device |
| Vertical actuation of contacts |
| More consistent package contact |
| Centralized force distribution methodology |
| Reduced/minimize X-Y movement of package |
| Configurable/adjustable lead backer |
| Easy to replace lead backer when changing between various size of packages |
| Provides quick placement and removal of package |
| Better airflow to package |
| Center thru holes in the entire unit ensure better temperature control |
